2噸單鏈DLER環鏈電動葫蘆掛鉤式
2噸單鏈DLER環鏈電動葫蘆掛鉤式

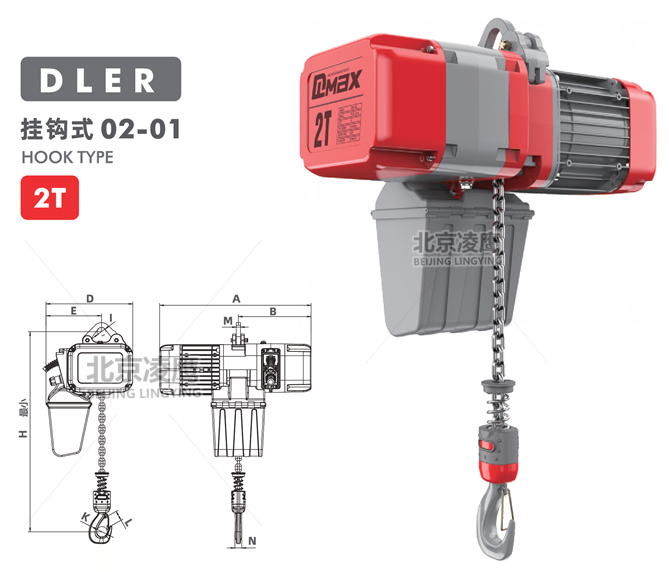

參數表：
|
|
長度（mm） |
|
H |
540 |
|
A |
695 |
|
B |
350 |
|
D |
420 |
|
E |
265 |
|
I |
45 |
|
M |
20 |
|
N |
35 |
|
K |
52 |
|
L |
42 |
|
MODEL型號 |
DLEK 02-01 |
||
|
DLEK 1/DLEK2 |
DLEK3 |
DLEK4 |
|
|
Maximum load 最大載荷(≤6m/h) |
2.3t |
||
|
Rated load(Ton) 額定載荷(≤6m/h) |
2t |
||
|
Lifting speed(m/min)起升速度 |
單速6.8 |
雙速2.2/6.8 |
變頻0.8~6.8 |
|
Motor Power(kw)電機功率 |
單速3 |
雙速1.1/3 |
變頻3 |
|
Rotation speed(r/min)轉速 |
單速1440 |
雙速430/1440 |
變頻200~1440 |
|
Motor insulation class 電機絕緣等級 |
F |
||
|
Frequency(Hz)頻率 |
50 |
||
|
Power Supply 工作電壓 |
Ac 380V L1 L2 L3 〧 |
||
|
Control Volatage 控制電壓 |
AC36V |
||
|
NO.of Load Chain鏈條回數 |
1 |
||
|
Spec.of Load Chain 鏈條規格 |
10x30 |
||
|
Working level 工作級別 |
M5 |
||
